SY4A-02R-C/D/E-0-AFR
2,54 mm

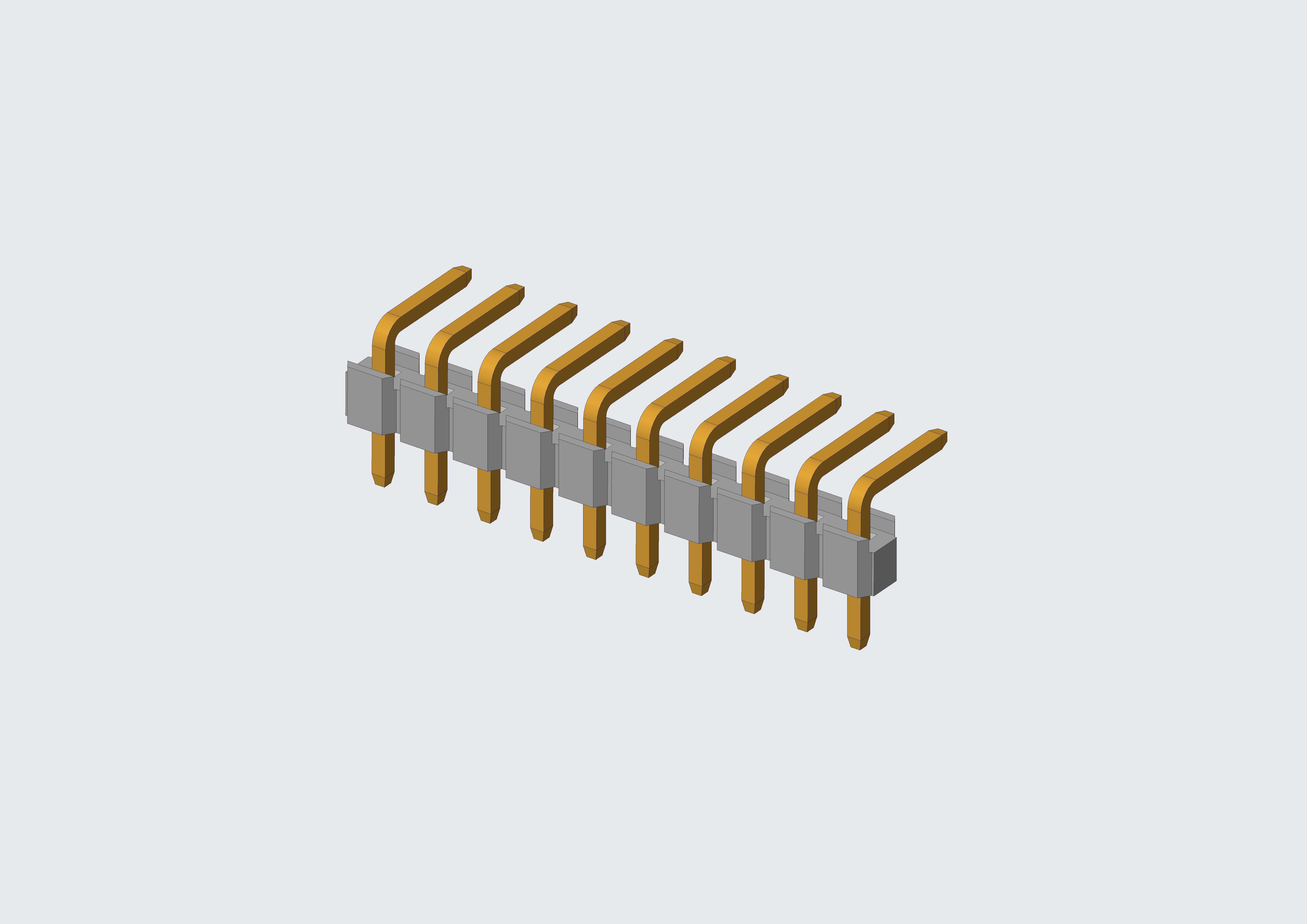

Pinheader 2,54 mm
SY4A-XXR-C/D/E-X-XXX
single row
1
2,54 mm
SY4A-
No. of Pins
2-40..Anzahl der Pins
2-40
Single connector height
2,54 mm..Höhe des Kunststoff-Körpers
2,54 mm
Mounting type
Right Angle (R)..Montageart
Right Angle (R)
-
Dimension C
1,5-8 (2,7)
/
Dimension D
1,5-8 (2,7)
/
Dimension E
1,5-8 (2,7)
-
Plating
Matte Tin Plated (A) , Gold Flah (B) , Bright Tin Plated (V)..Beschichtung
Matte Tin Plated (A) , Gold Flah (B) , Bright Tin Plated (V)
Material
High Temperature Thermoplastic (F), Halogen Free (H)..Material
High Temperature Thermoplastic (F), Halogen Free (H)
Packaging Option
PE Bag (A) , Tube (G) , Tube+PAD (P) , Tube+Mylar (F) , Reel (K) , Reel+Mylar (C)..Verpackung
PE Bag (A) , Tube (G) , Tube+PAD (P) , Tube+Mylar (F) , Reel (K) , Reel+Mylar (C)
Location post
1..Positionshilfe
1
